To create a simple EJB module, we will use NetBeans, "New project" wizard. In the example given below, We will create an EJB module project named Component.


Create Project

In NetBeans IDE, select File > New Project >. You will see the following screen

New Project Wizard step 1

Select project type under category Java EE, Project type as EJB Module. Click Next > button. You will see the following screen.

New Project Wizard step 2

Enter project name and location. Click Next > button. You will see the following screen.

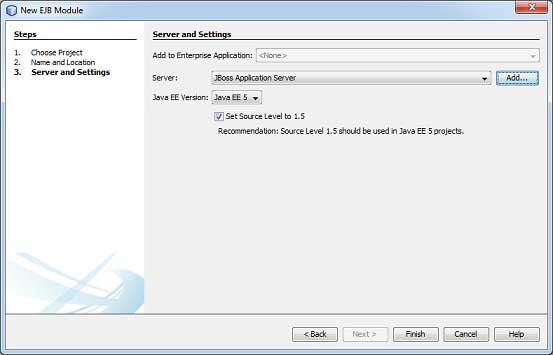

New Project Wizard step 3

Select Server as JBoss Application Server. Click Finish button. You will see the following project created by NetBeans.

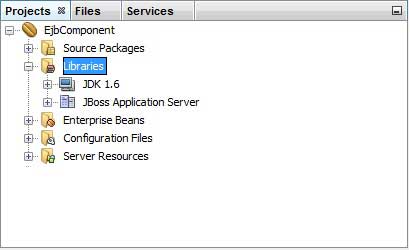

Project explorer

Create a Sample EJB

To create a simple EJB, we will use NetBeans "New" wizard. In the example given below, We will create a stateless EJB class named librarySessionBean under EjbComponent project.

Select project EjbComponent in project explorer window and right click on it. Select, New > Session Bean. You will see the New Session Bean wizard.

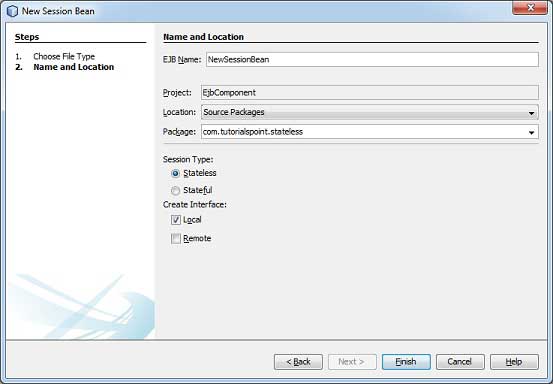

New Session Bean Wizard

Enter session bean name and package name. Click Finish button. You will see the following EJB classes created by NetBeans.

  • LibrarySessionBean − stateless session bean

  • LibrarySessionBeanLocal − local interface for session bean

I am changing local interface to remote interface as we are going to access our EJB in a console based application. Remote/Local interface is used to expose business methods that an EJB has to implement.

LibrarySessionBeanLocal is renamed to LibrarySessionBeanRemote and LibrarySessionBean implements LibrarySessionBeanRemote interface.

LibrarySessionBeanRemote

package com.tutorialspoint.stateless;

import java.util.List;
import javax.ejb.Remote;

@Remote
public interface LibrarySessionBeanRemote {
   void addBook(String bookName);
   List getBooks();
}

LibrarySessionBean

package com.tutorialspoint.stateless;

import java.util.ArrayList;
import java.util.List;
import javax.ejb.Stateless;

@Stateless
public class LibrarySessionBean implements LibrarySessionBeanRemote {

   List<String> bookShelf;

   public LibrarySessionBean() {
      bookShelf = new ArrayList<String>();
   }

   public void addBook(String bookName) {
      bookShelf.add(bookName);
   }

   public List<String> getBooks() {
      return bookShelf;
   }
}

Build the Project

  • Select EjbComponent project in Project Explorer window.
  • Right click on it to open context menu.
  • Select clean and build.

You will see the following output in NetBeans console output.

ant -f C:\\EJB\\EjbComponent clean dist
init:
undeploy-clean:
deps-clean:
Deleting directory C:\EJB\EjbComponent\build
Deleting directory C:\EJB\EjbComponent\dist
clean:
init:
deps-jar:
Created dir: C:\EJB\EjbComponent\build\classes
Copying 3 files to C:\EJB\EjbComponent\build\classes\META-INF
Created dir: C:\EJB\EjbComponent\build\empty
Created dir: C:\EJB\EjbComponent\build\generated-sources\ap-source-output
Compiling 2 source files to C:\EJB\EjbComponent\build\classes
warning: [options] bootstrap class path not set in conjunction with -source 1.6
Note: C:\EJB\EjbComponent\src\java\com\tutorialspoint\stateless
\LibraryPersistentBean.java uses unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.
1 warning
compile:
library-inclusion-in-archive:
Created dir: C:\EJB\EjbComponent\dist
Building jar: C:\EJB\EjbComponent\dist\EjbComponent.jar
dist:
BUILD SUCCESSFUL (total time: 3 seconds)

Start the Application Server

  • Select JBoss application server under Servers in Services window.
  • Right click on it to open context menu.
  • Select start.

You will see the following output in NetBeans, output under JBoss Application Server.

Calling C:\jboss-5.1.0.GA\bin\run.conf.bat
=========================================================================

   JBoss Bootstrap Environment

   JBOSS_HOME: C:\jboss-5.1.0.GA

   JAVA: C:\Program Files (x86)\Java\jdk1.6.0_21\bin\java

   JAVA_OPTS: -Dprogram.name=run.bat -Xms128m -Xmx512m -server

   CLASSPATH: C:\jboss-5.1.0.GA\bin\run.jar

=========================================================================

16:25:50,062 INFO  [ServerImpl] Starting JBoss (Microcontainer)...
16:25:50,062 INFO  [ServerImpl] Release ID: JBoss
   [The Oracle] 5.1.0.GA (build: SVNTag=JBoss_5_1_0_GA date=200905221634)
...

16:26:40,420 INFO  [TomcatDeployment] deploy, ctxPath=/admin-console
16:26:40,485 INFO  [config] Initializing Mojarra (1.2_12-b01-FCS) for context '/admin-console'
16:26:42,362 INFO  [TomcatDeployment] deploy, ctxPath=/
16:26:42,406 INFO  [TomcatDeployment] deploy, ctxPath=/jmx-console
16:26:42,471 INFO  [Http11Protocol] Starting Coyote HTTP/1.1 on http-127.0.0.1-8080
16:26:42,487 INFO  [AjpProtocol] Starting Coyote AJP/1.3 on ajp-127.0.0.1-8009
16:26:42,493 INFO  [ServerImpl] JBoss (Microcontainer)
   [5.1.0.GA (build: SVNTag=JBoss_5_1_0_GA date=200905221634)] Started in 52s:427ms

Deploy the Project

  • Select EjbComponent project in Project Explorer window.
  • Right click on it to open context menu.
  • Select Deploy.

You will see the following output in NetBeans console output.

ant -f C:\\EJB\\EjbComponent -DforceRedeploy=true -Ddirectory.deployment.supported=false -Dnb.wait.for.caches=true run
init:
deps-jar:
compile:
library-inclusion-in-archive:
Building jar: C:\EJB\EjbComponent\dist\EjbComponent.jar
dist-directory-deploy:
pre-run-deploy:
Checking data source definitions for missing JDBC drivers...
Distributing C:\EJB\EjbComponent\dist\EjbComponent.jar to [org.jboss.deployment.spi.LocalhostTarget@1e4f84ee]
Deploying C:\EJB\EjbComponent\dist\EjbComponent.jar
Application Deployed
Operation start started
Operation start completed
post-run-deploy:
run-deploy:
run:
BUILD SUCCESSFUL (total time: 2 seconds)

JBoss Application Server Log Output

16:30:00,963 INFO  [DeployHandler] Begin start, [EjbComponent.jar]
...
16:30:01,233 INFO  [Ejb3DependenciesDeployer] Encountered deployment AbstractVFSDeploymentContext@12038795{vfszip:/C:/jboss-5.1.0.GA/server/default/deploy/EjbComponent.jar/}
...
16:30:01,281 INFO  [JBossASKernel]    jndi:LibrarySessionBean/remote-com.tutorialspoint.stateless.LibrarySessionBeanRemote
16:30:01,281 INFO  [JBossASKernel]    Class:com.tutorialspoint.stateless.LibrarySessionBeanRemote
16:30:01,281 INFO  [JBossASKernel]    jndi:LibrarySessionBean/remote
16:30:01,281 INFO  [JBossASKernel]  Added bean(jboss.j2ee:jar=EjbComponent.jar,name=
LibrarySessionBean,service=EJB3) to KernelDeployment of: EjbComponent.jar
16:30:01,282 INFO  [JBossASKernel] installing bean: jboss.j2ee:jar=EjbComponent.jar,name=BookMessageHandler,service=EJB3
16:30:01,282 INFO  [JBossASKernel]   with dependencies:
16:30:01,282 INFO  [JBossASKernel]   and demands:
16:30:01,282 INFO  [JBossASKernel]    jboss.ejb:service=EJBTimerService
...
16:30:01,283 INFO  [EJB3EndpointDeployer] Deploy
AbstractBeanMetaData@5497cb{name=jboss.j2ee:jar=EjbComponent.jar,
name=LibrarySessionBean, service=EJB3_endpoint bean=org.jboss.ejb3.endpoint.deployers.impl.EndpointImpl properties=[container] constructor=null autowireCandidate=true}
...
16:30:01,394 INFO  [SessionSpecContainer] Starting jboss.j2ee:jar=EjbComponent.jar,name=LibrarySessionBean,service=EJB3
16:30:01,395 INFO  [EJBContainer] STARTED EJB: com.tutorialspoint.stateless.LibrarySessionBean ejbName: LibrarySessionBean
16:30:01,401 INFO  [JndiSessionRegistrarBase] Binding the following Entries in Global JNDI:
   LibrarySessionBean/remote - EJB3.x Default Remote Business Interface
   LibrarySessionBean/remote-com.tutorialspoint.stateless.LibrarySessionBeanRemote - EJB3.x Remote Business Interface
16:30:02,723 INFO  [SessionSpecContainer] Starting jboss.j2ee:jar=EjbComponent.jar,name=LibrarySessionBean,service=EJB3
16:30:02,723 INFO  [EJBContainer] STARTED EJB: com.tutorialspoint.stateless.LibrarySessionBean ejbName: LibrarySessionBean
16:30:02,731 INFO  [JndiSessionRegistrarBase] Binding the following Entries in Global JNDI:

   LibrarySessionBean/remote - EJB3.x Default Remote Business Interface
   LibrarySessionBean/remote-com.tutorialspoint.stateless.LibrarySessionBeanRemote - EJB3.x Remote Business Interface

Create Client to Access EJB

  • In NetBeans IDE, select File > New Project >.

  • Select project type under category Java, Project type as Java Application. Click Next > button

  • Enter project name and location. Click Finish > button. We have chosen name as EjbTester.

  • Right click on project name in Project explorer window. Select properties.

  • Add EJB component project created earlier under libraries using Add Project button in compile tab.

  • Add jboss libraries using Add jar/folder button in compile tab. Jboss libraries can be located at <jboss installation folder>> client folder.

Create jndi.properties under project say EjbTester.

jndi.properties

java.naming.factory.initial=org.jnp.interfaces.NamingContextFactory
java.naming.factory.url.pkgs=org.jboss.naming:org.jnp.interfaces
java.naming.provider.url=localhost

Create package com.tutorialspoint.test and EJBTester.java class under it.

EJBTester.java

package com.tutorialspoint.test;

import com.tutorialspoint.stateless.LibrarySessionBeanRemote;
import java.io.BufferedReader;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.util.List;
import java.util.Properties;
import javax.naming.InitialContext;
import javax.naming.NamingException;


public class EJBTester {
   BufferedReader brConsoleReader = null;
   Properties props;
   InitialContext ctx;
   {
      props = new Properties();
      try {
         props.load(new FileInputStream("jndi.properties"));
      } catch (IOException ex) {
         ex.printStackTrace();
      }
      try {
         ctx = new InitialContext(props);
      } catch (NamingException ex) {
         ex.printStackTrace();
      }
      brConsoleReader =
      new BufferedReader(new InputStreamReader(System.in));
   }
   public static void main(String[] args) {

      EJBTester ejbTester = new EJBTester();

      ejbTester.testStatelessEjb();
   }
   private void showGUI() {
      System.out.println("**********************");
      System.out.println("Welcome to Book Store");
      System.out.println("**********************");
      System.out.print("Options \n1. Add Book\n2. Exit \nEnter Choice: ");
   }
   private void testStatelessEjb() {
      try {
         int choice = 1;
         LibrarySessionBeanRemote libraryBean =
         (LibrarySessionBeanRemote)ctx.lookup("LibrarySessionBean/remote");
         while (choice != 2) {
            String bookName;
            showGUI();
            String strChoice = brConsoleReader.readLine();
            choice = Integer.parseInt(strChoice);
            if (choice == 1) {
               System.out.print("Enter book name: ");
               bookName = brConsoleReader.readLine();
               libraryBean.addBook(bookName);
            }else if (choice == 2) {
               break;
            }
         }
         List<String> booksList = libraryBean.getBooks();
         System.out.println("Book(s) entered so far: " + booksList.size());
         for (int i = 0; i < booksList.size(); ++i) {
            System.out.println((i+1)+". " + booksList.get(i));
         }
         LibrarySessionBeanRemote libraryBean1 =
         (LibrarySessionBeanRemote)ctx.lookup("LibrarySessionBean/remote");
         List<String> booksList1 = libraryBean1.getBooks();
         System.out.println(
            "***Using second lookup to get library stateless object***");
         System.out.println(
            "Book(s) entered so far: " + booksList1.size());
         for (int i = 0; i < booksList1.size(); ++i) {
            System.out.println((i+1)+". " + booksList1.get(i));
         }
      } catch (Exception e) {
         System.out.println(e.getMessage());
         e.printStackTrace();
      } finally {
         try {
            if(brConsoleReader !=null) {
               brConsoleReader.close();
            }
         } catch (IOException ex) {
            System.out.println(ex.getMessage());
         }
      }
   }
}

Run Client to Access EJB

Locate EJBTester.java in project explorer. Right click on EJBTester class and select run file.

Verify the following output in Netbeans console.

run:
**********************
Welcome to Book Store
**********************
Options
1. Add Book
2. Exit
Enter Choice: 1
Enter book name: Learn Java
**********************
Welcome to Book Store
**********************
Options
1. Add Book
2. Exit
Enter Choice: 2
Book(s) entered so far: 1
1. Learn Java
***Using second lookup to get library stateless object***
Book(s) entered so far: 0
BUILD SUCCESSFUL (total time: 13 seconds)
